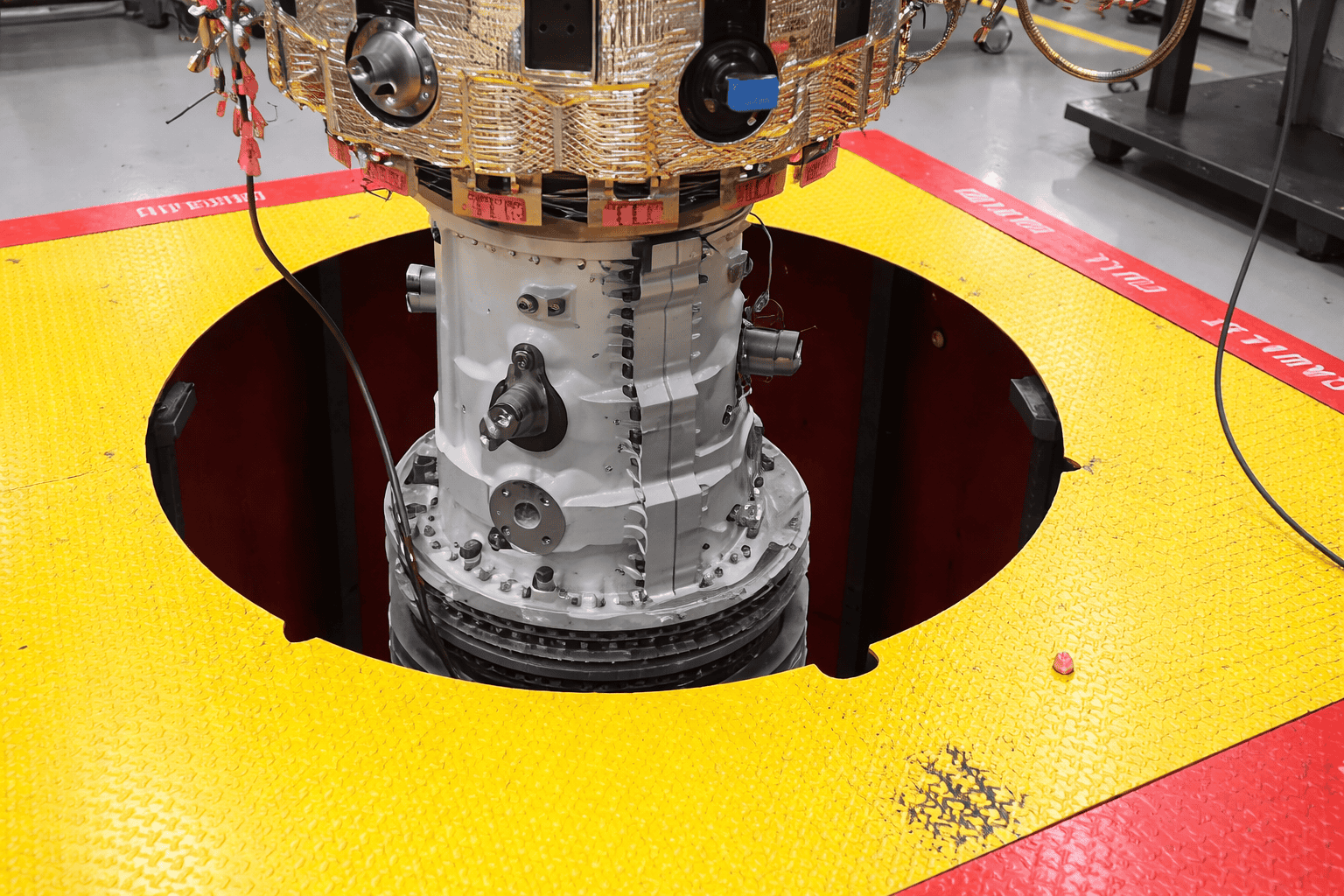

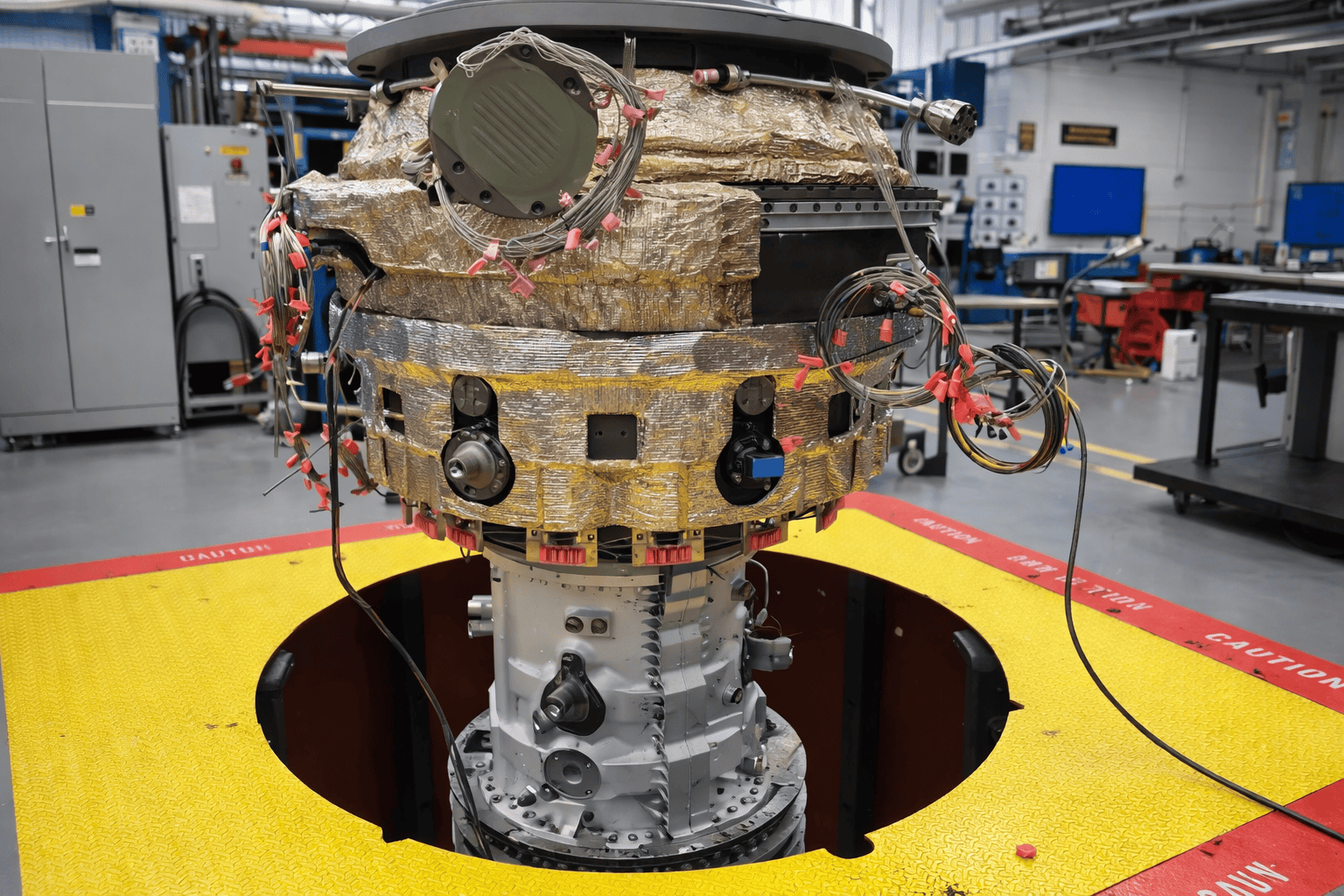

Turbine assembly lifts are often designed to be fitted into existing pits allowing for greater safety during the assembly process, keeping all moving parts of the four-post lift below grade. This accommodates the ergonomic requirement as well allowing technicians to work at a single stage with easy access to tooling and parts while they manipulate the turbine to raise and lower at their command. The unit travels on four ball screws propelled by electro-mechanical actuation.


  • 4 ball screws
  • Up/Down travel switches
  • Up over/ Down over travel switches
  • Lockable disconnect switch
  • Motor overload relays
  • DC power supply
  • Over-current protection.

For more information on the Vertical Assembly Lift for Turbine/Rotor Stacking or other solutions
