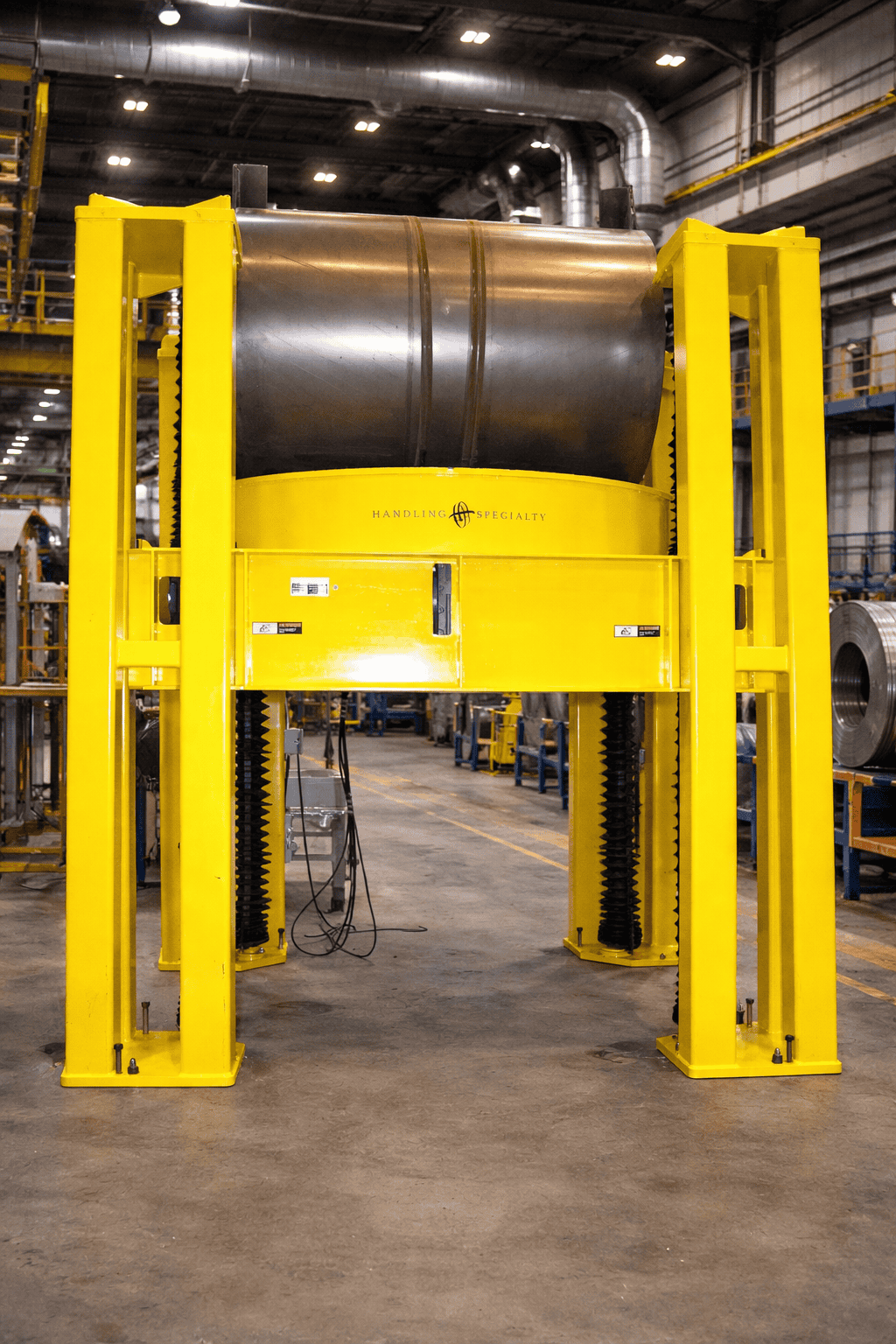

Steel Coil Handling Equipment
This is an engineered material handling, four post lifting platform for the iron & steel industry.
| Solution: | 2332 |
|---|---|
| Industry | Iron & Steel Industries Manufacturing Equipment |
| Model: | CV108-1000 |
| Type: | Multi Stage Lift |
| Actuation: | Mechanical |
| Dimensions: | 124" × 119" × 46 |
| Travel: | 108" |
| Capacity: | 100,000 |
Overview
This steel coil handling equipment was designed to handle a uniform load of steel coil managing 2 Cycles per shift / 2 shifts per day / 1450 cycles per year.
Engineered for strength and structural rigidity, this four-post lift operates via 4 ball screws and is capable of lifting up to 100,000 lbs.
Features
- 1 fixed Pendant station
- Full safety package including upper, lower and over travel limit switches
For more information on the Steel Coil Handling Equipment or other solutions
