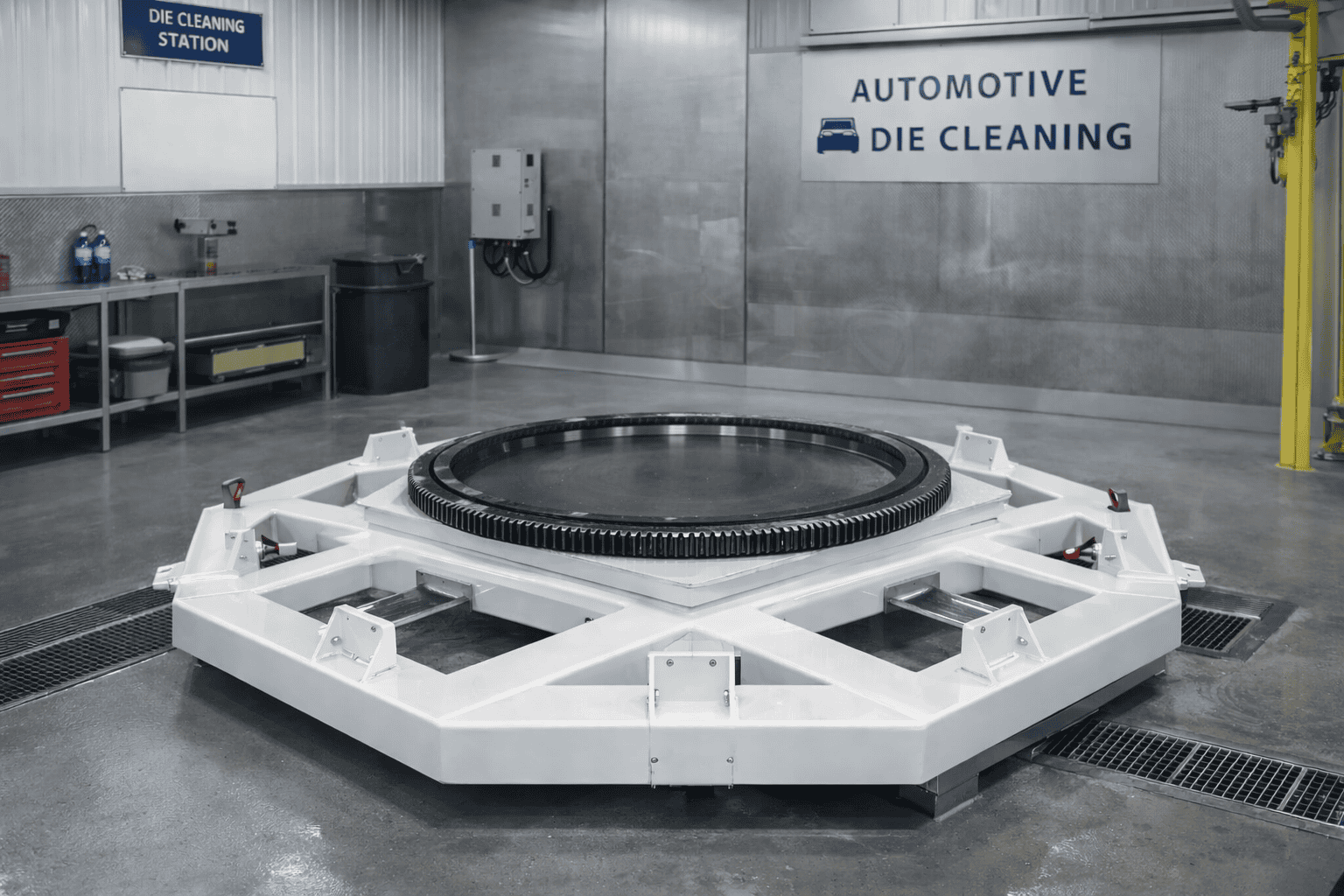

Rotator for Automotive Die Cleaning
| Solution: | 83 |
|---|---|
| Industry | Automotive Lift and Positioning Equipment |
| Model: | Rotator for Automotive Die Cleaning |
| Type: | Rotator |
| Actuation: | Mechanical |
| Dimensions: | 142" × 98" × 21 |
| Capacity: | 20,000 lbs. |
Overview
Handling Specialty custom engineered and manufactured a 20,000 lb capacity rotator to be used by an aluminium casting facility for the automotive industry as part of a robotic process for the cleaning of 4,500 lb core dies with dry ice. In addition to handling the weight of the dies, the rotator top also must support 2,000 lbs in tooling.
Features
- 20,000 lb. capacity to lift two 4,500 lb dies and 2,000 lbs tooling
- Repeatability at 96” radius ± 1/16
- Slewing ring bearing design
