Jet Engine Test Cell Lift

Solution:153
Industry:Aerospace & Defence Material Handling Equipment
Model:Jet Engine Test Cell Lift
Type:Multi Stage Lift
Actuation:Hydraulic
Dimensions:393" × 216"
Travel:126"
Capacity:40,000 lbs.

Overview

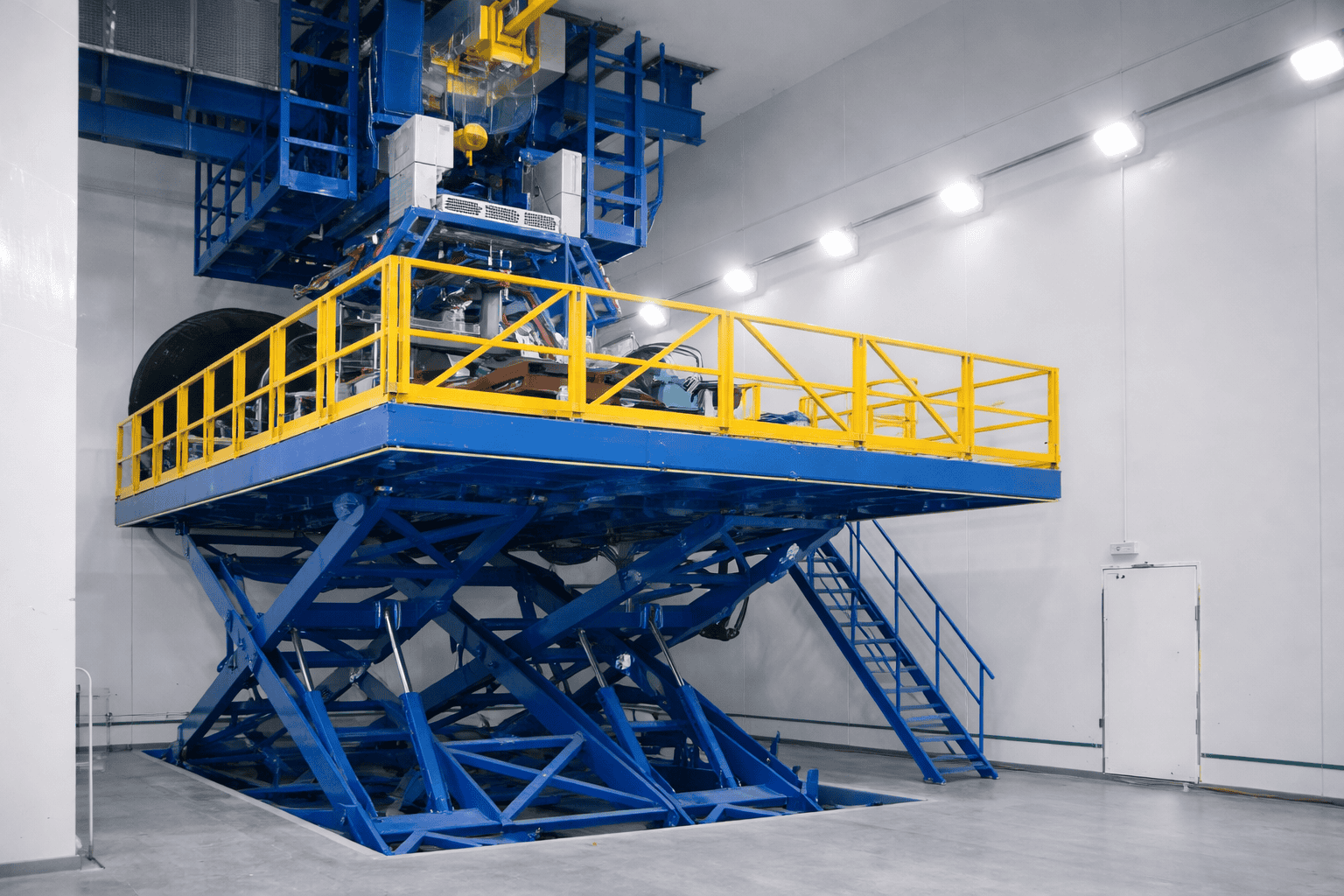

In order to conduct tests on jet engines, Handling Specialty manufactured this custom jet engine test cell for an aircraft manufacturer located in northern Russia.

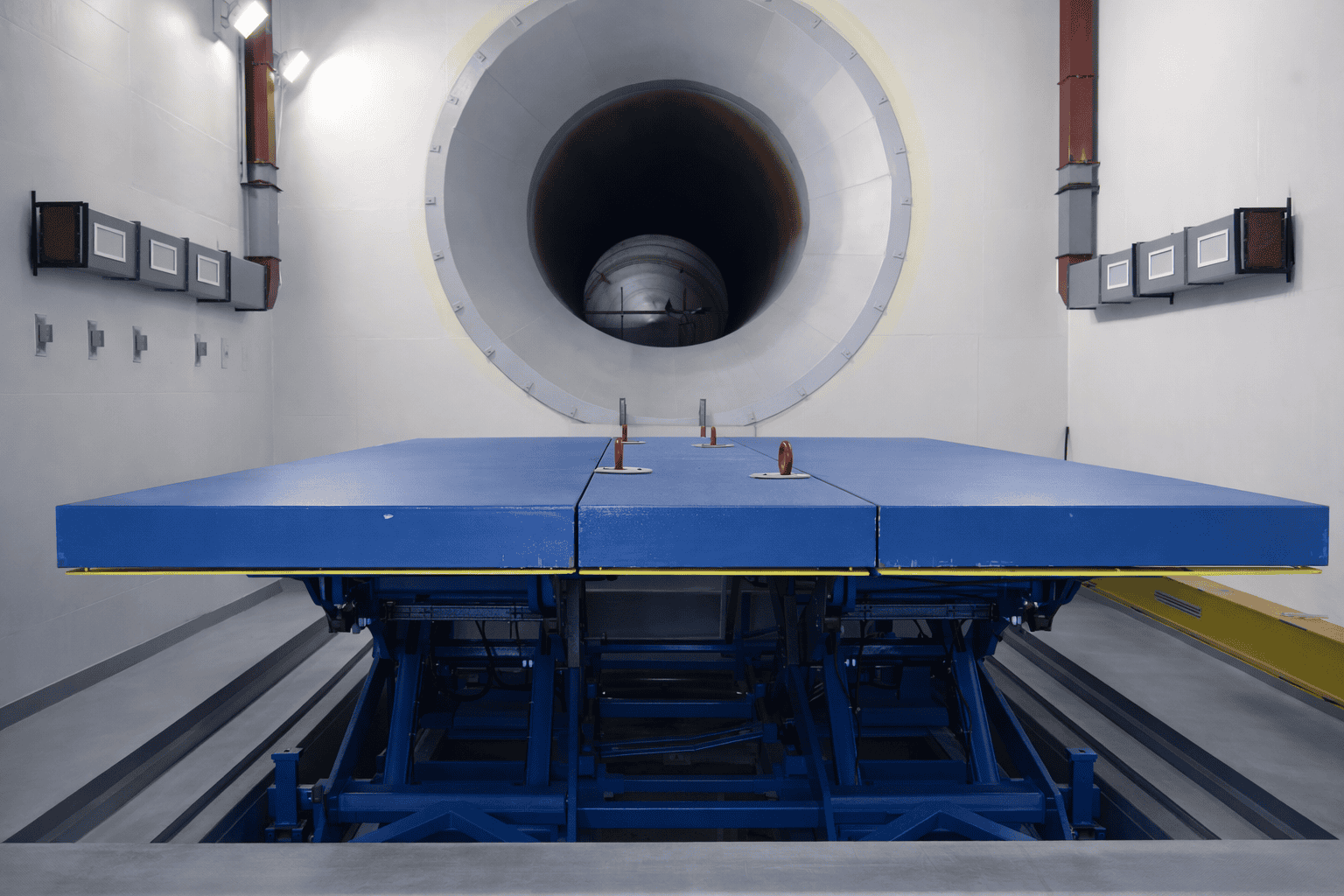

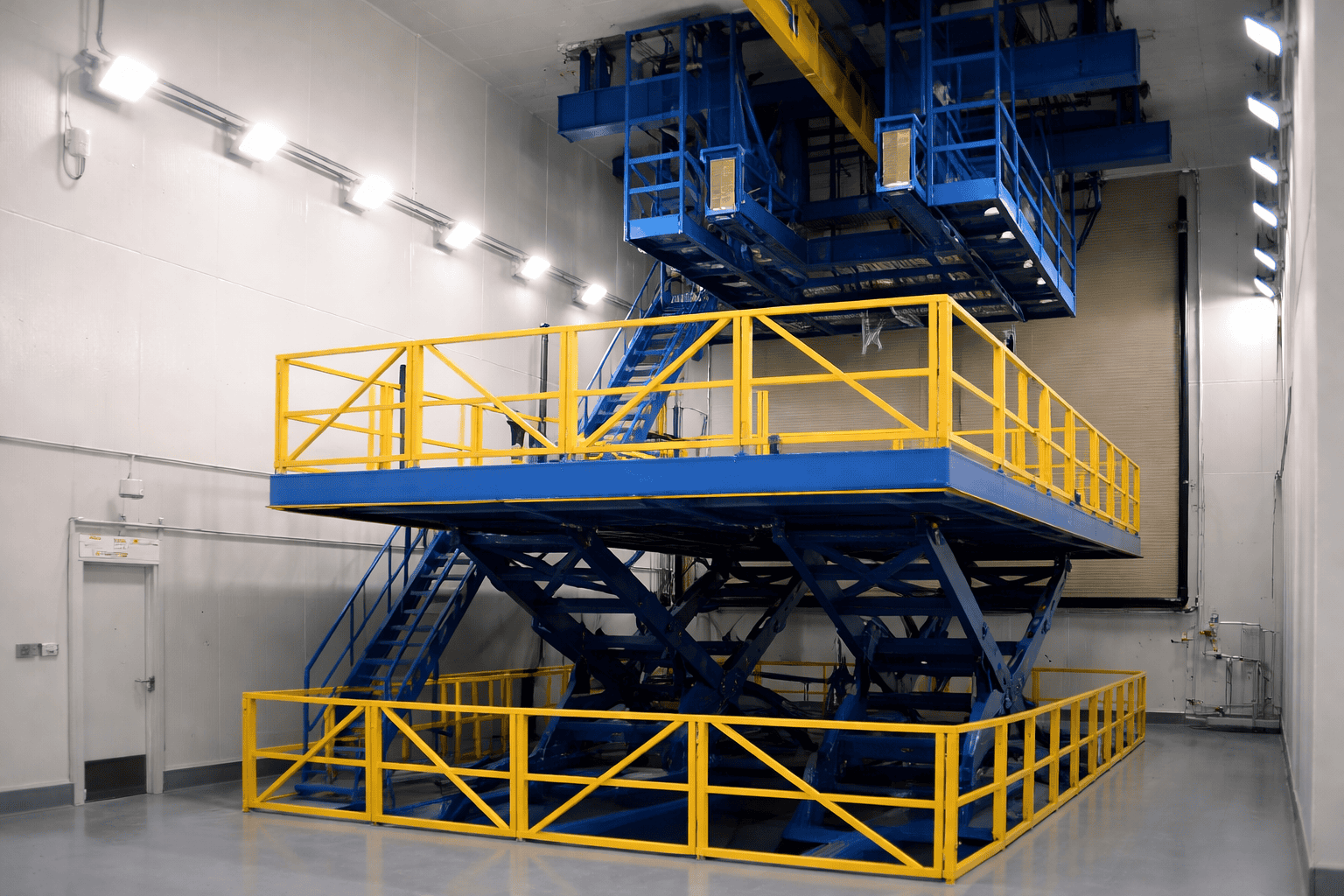

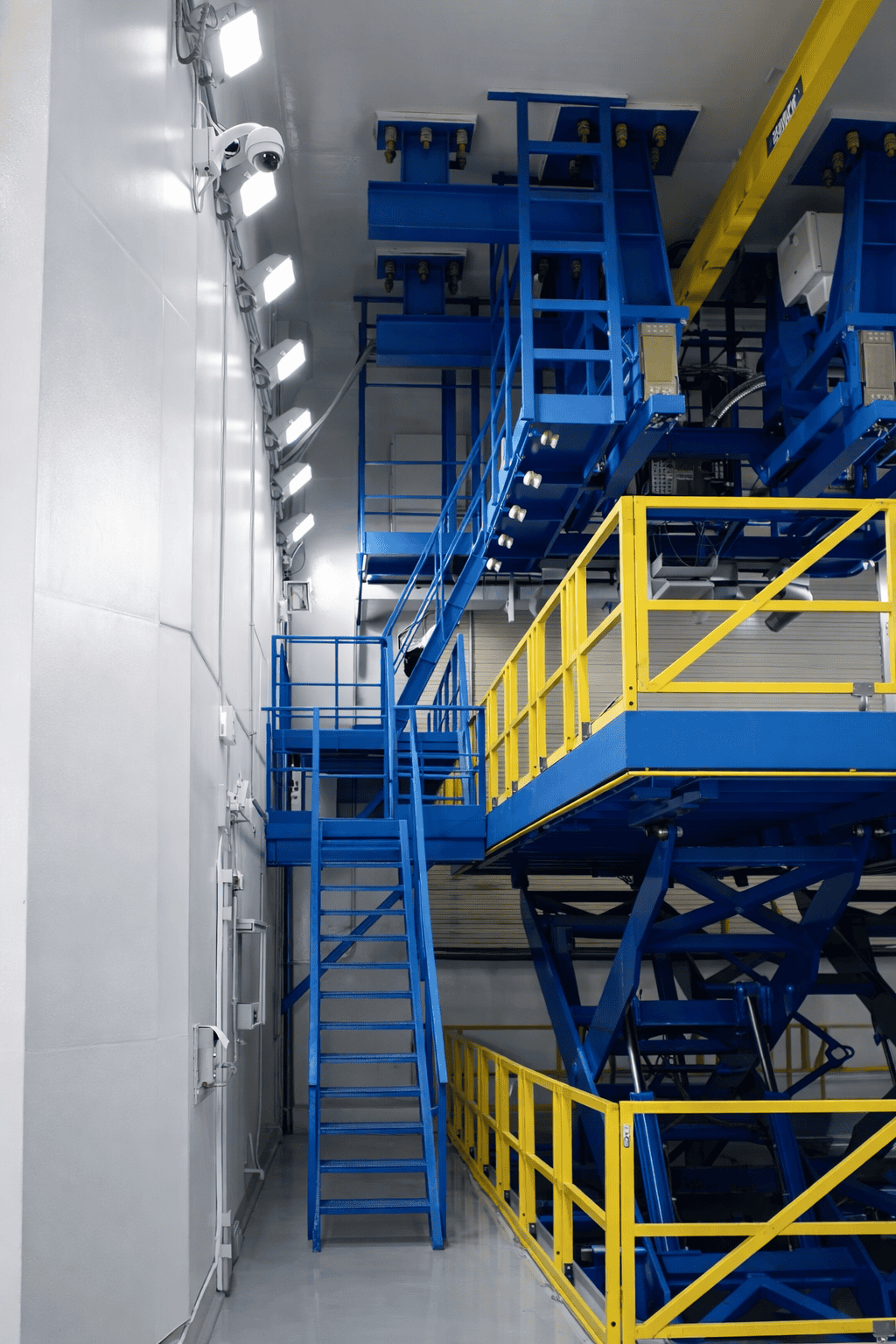

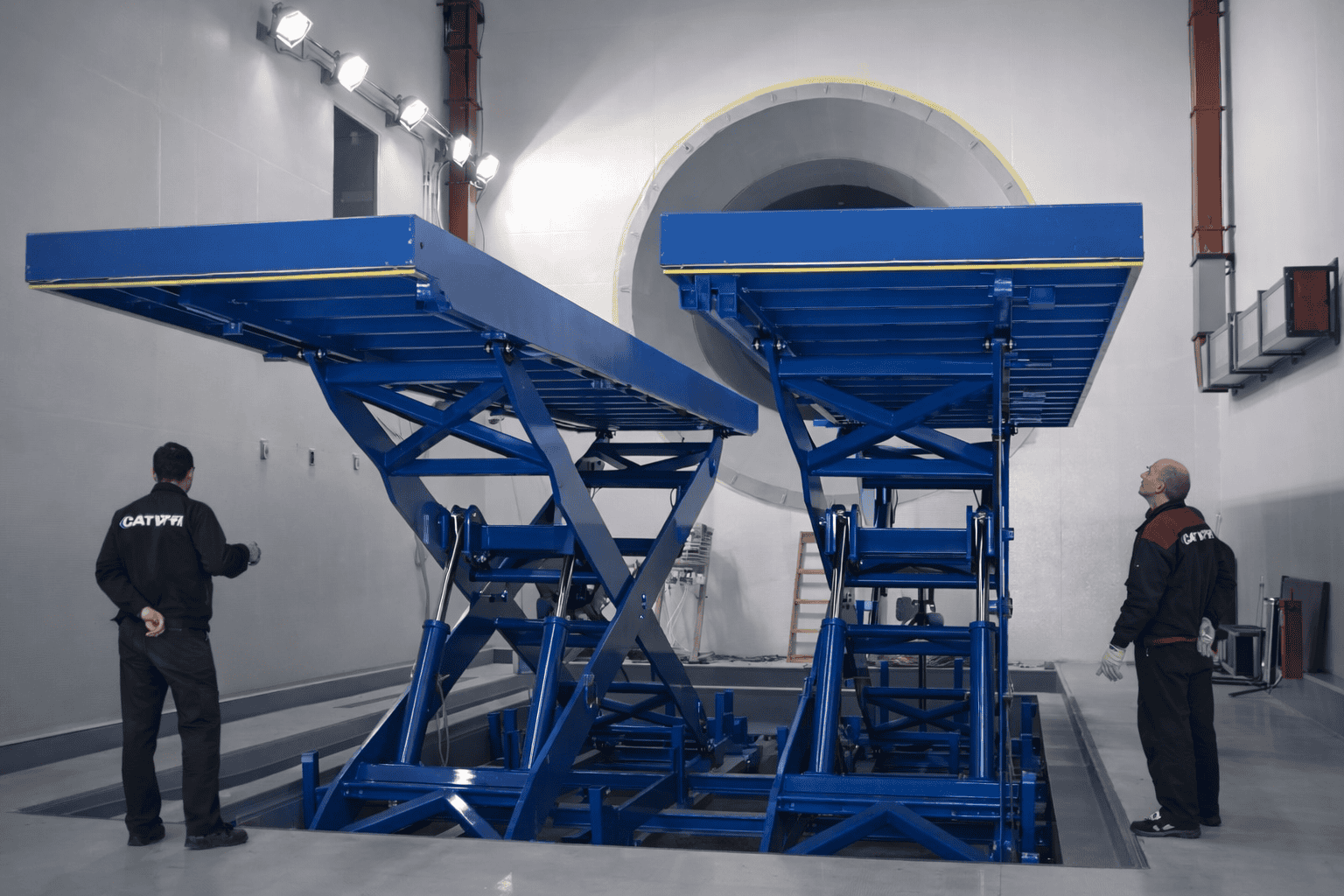

The test cell comes with two (2) hydraulically actuated pit-mounted scissor lifts under a main platform. Removable guard rails with hinged forward, and side sections create gates, permitting easy access for workers and the loading/unloading of tools and other equipment onto the platform.

While the lifts are fully collapsed, a jet engine is docked via a monorail system; personnel and equipment are moved onto the platform. The test cell is then raised to a comfortable working height to allow the dressing of the test engine.

Features

  • Extreme operating temperatures:  -40°C to +50°C.
  • Explosion-proof rated components.
  • Full perimeter removable guard rail with kick plate.
