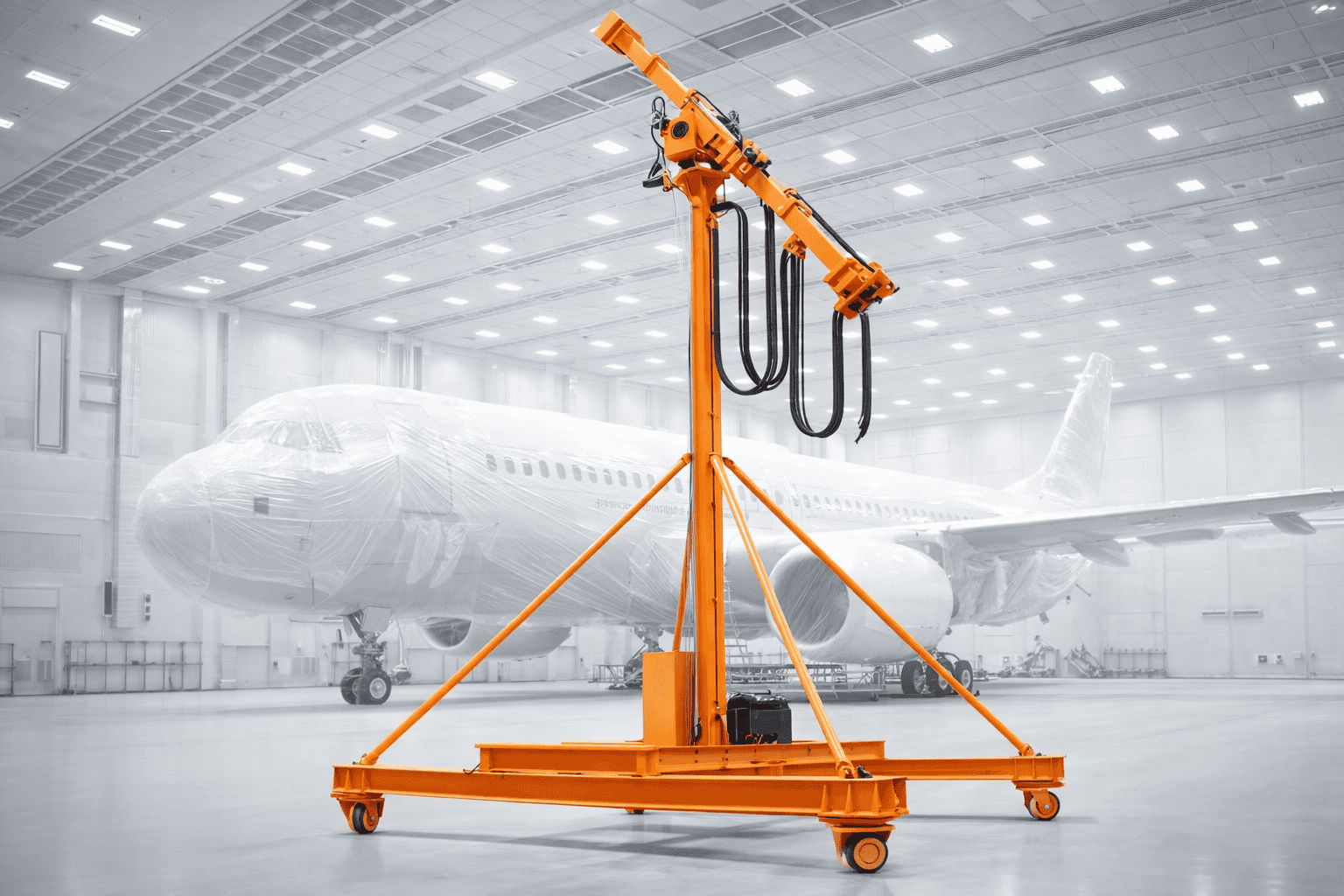

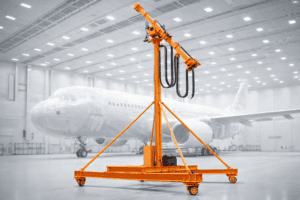

Robotic Aircraft Paint Removal Lift

Robotic Aircraft Paint Removal Lift

Overview

C The unit is operated by a large moveable console which houses the touchscreen and joystick.

Features

  • Moveable base supports a 45’ mast, and is equipped with a robotic-type arm capable of moving 180°(left to right motion)
  • Retracted height 25’ and extended height 65’
  • Horizontal arm extends to 21’ from center of rotation
  • Spray nozzle used to sandblast or paint an aircraft
  • Platform equipped with four outriggers and leveled via screw jacks
  • Rolling cart houses the touch screen and joystick
